TECHNICAL SPECIFICATIONS

Rated Output Power: 0-150 W continuously variable (ALC)

RF Output Connector: "N" type female

RF Output Impedance: 50 ohm

Frequency Range: 87.5 ÷ 108 MHz

Emission Class: F3E

VCO Tuning: 25 MHz

Frequency Deviation: ±75KHz

Max Frequency Deviation: ± 200KHz

Frequency Stability: ± 2.5 ppm

Synthesizer Step: 10KHz or 100KHz selectable

Spurious Emission: < - 90 dB or better

Harmonic Emission: < - 75 dB

RF Testing Sampler: BNC-F 0dBm

Stereo Separation: > 58 dB @ 1KHz

VSWR: 2:1 AT RATED OUTPUT - DYNAMIC PROTECTION NO-STOP SYSTEM

Distortion THD:  < 0.1 % (TYP. 0.05%) @ 1KHz

Distortion IMD: < 0.1 % (TYP. 0.05%)

Base Band: 30 Hz ÷ 60 KHz  within   0.15 dB

Unweighted S/N Ratio: > 80 dB  (30Hz ÷ 15KHz  50 mS RMS)

Asyncronous AM S/N Ratio: > 60 dB Ref. 100% AM 400Hz

Syncronous AM S/N Ratio: > 55 dB with FM @ 75KHz @400Hz

Pre-Emphasis: 0, 50, 75 μS int. selectable

Rf Output Connector: N-F 50 Ohm

MPX Input Connecor: BNC-F  2 KOhm

Mono/Stereo Input Connector: XLR BALANCED 2kOhm

AES-EBU Connectors: BNC UNB. 75Ohm or XLR BALANCED 110Ohm

AES-EBU Sample Rate: 32,44.1,48,96 KHz SELF SETTING

RS485: N.02 RJ45

Ethernet: N.01 RJ45

Setting Port: FRONT PANEL USB STANDARD B

Audio Level Setting: 0.1 dB Step

Overall Efficiency: > 70% from 50% to rated output power

Power Supply and Consumption: 110 to 230vac 50÷60Hz ~ 430VA

Cooling: Forced air by brushless fan - Noise < 67dB front

Operating Temperature Range:14 to 113 °F  (-10 to 45 °C)

Dimensions: 19 x1.5x16 (483x44x410mm)

Weight: 15Lbs (6.8kg)

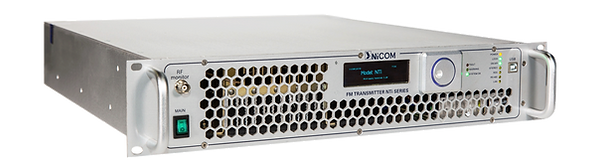

Overview: Phase Locked Loop Programmable FM Exciter/Transmitter 87.5 - 108 MHz Range

  • Built-In Stereo Generator, RDS Encoder and S/PDIF and AES/EBU for Digital Audio

  • Instant front panel programmability through a large OLED graphic display and user friendly Encoder Shuttle

  • Built in Web server with Alarm monitoring via Email and Ethernet Connection

  • Microprocessor controlled power level output from 0 to 150 W front panel or remotely

  • Audio Levels and Modulation levels controlled through the front panel or Remotely

  • Night/Day power lever scheduler

  • Front panel USB port for easy PC connectivity

  • Event and Errors logger for up to one year of History

  • FCC and IC Certified

remote software

Open a Web- browser ( Microsoft Edge, Mozilla Firefox, Chrome … ) and enter the pre-set IP adress: 192.168.1.100 Automatically the main page comes up asking for a USER and PASSWORD. USER: admin PASSWORD: adm

This is the default for the Administrator Once entered, the HOME page comes up:

Inside SETTING it is also possible to set the Audio Levels in every input of the transmitter. Again all changes needs to be confirmed with the SET button.

In the SETTING tab is possible to change the Frequency, power level, Audio levels and the alarms. Under SETTINGS, there is the option to set a power reduction at a specific time of day. All settings need to be confirmed with the SET button.
